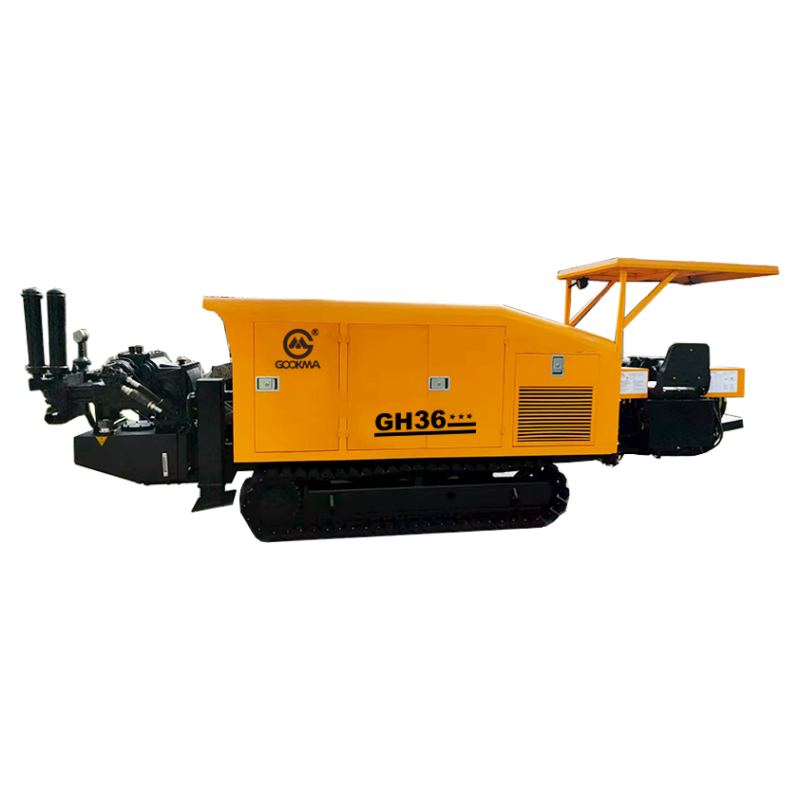

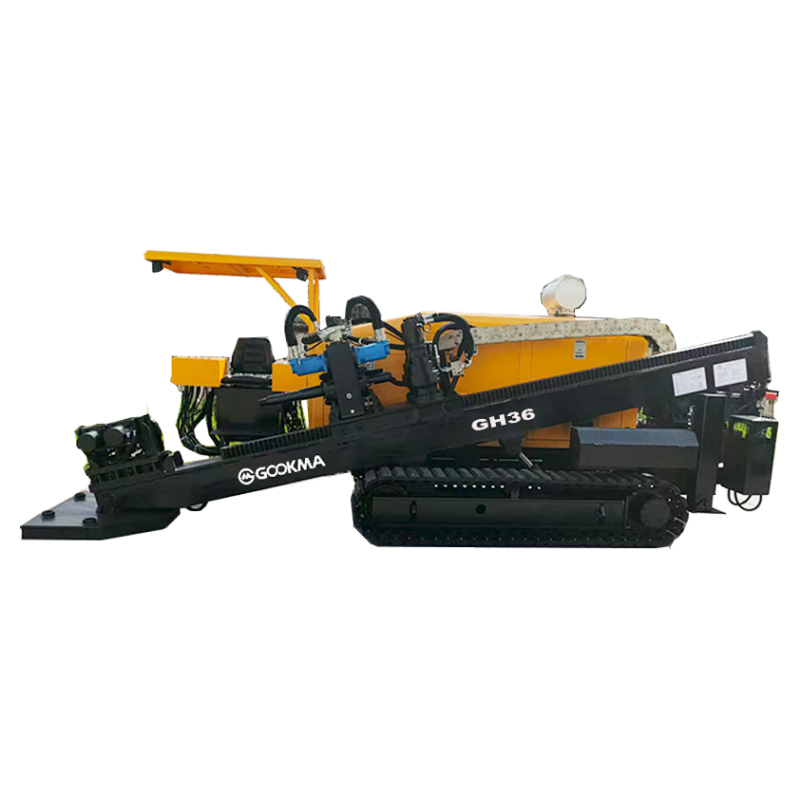

Horizontal Directional Drilling Machine GH36
Performance Characteristics
1. Equipped with a Cummins engine, strong power, stable performance, low fuel consumption and low noise, it is ideal for urban construction.
2. Pilot control for rotation and push/pull makes operation easier.
3. The power head is directly driven by a high-torque cycloid motor for rotation, offering high torque, stable performance, and four-speed speed adjustment for rotation. The power head push/pull uses a cycloid motor with four adjustable speeds, leading the industry in construction speed and expanding the scope of construction.
4. Utilizing a military-grade hydraulic gear pump, the crawler track system is simple to operate, making loading and unloading, and relocation quick and easy.
.
5. The ergonomically designed operator panel provides comfortable operation, significantly reducing fatigue. An optional rotating cab is available, equipped with air conditioning and heating, offering a wide field of view and a comfortable ride.
6. Equipped with a φ76 x 3000mm drill rod, the machine has a compact footprint, meeting the needs of efficient construction in confined areas.
7. The circuit design is scientific and rational, with a low failure rate and easy maintenance.
8. The machine's aesthetically pleasing appearance and easy maintenance fully embody its people-oriented design philosophy.
Technical Specifications
| Model | GH36 |
| Engine | Cummins, 153KW |
| Max torque | 16000N.m |
| Push-pull drive type | Rack and pinion |
| Max push-pull force | 360KN |
| Max push-pull speed | 40m / min. |
| Max slewing speed | 150rpm |
| Max reaming diameter | 1000mm (depends on soil condition) |
| Max drilling distance | 400m (depends on soil condition) |
| Drill rod | φ73x3000mm |
| Mud pump flow | 400L/m |
| Mud pump pressure | 10Mpa |
| Walking drive type | Crawler self-propelling |
| Walking speed | 2.5--4km/h |
| Entry angle | 13-19° |
| Max gradeability | 20° |
| Overall dimensions | 6600x2200x2400mm |
| Machine weight | 11000kg |
