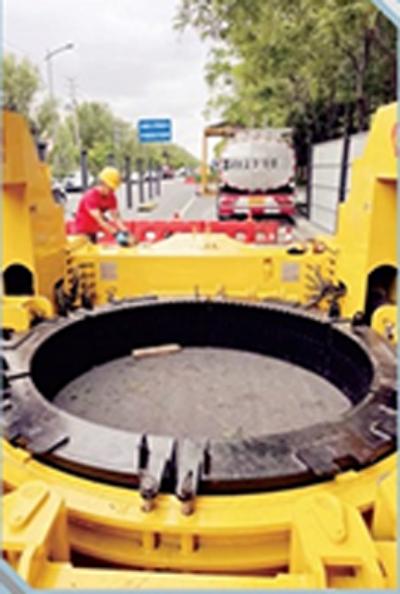

Static Pressure Caisson Machine

Short Description:

The static pressure caisson machine has high construction accuracy and verticality control capabilities. It can complete the intrusion, excavation and underwater bottom sealing of a 9-meter-deep well within 12 hours. At the same time, it controls the ground settlement within 3 centimeters by maintaining the stability of the bearing layer. The equipment can also reuse steel casings to reduce material costs. It is also suitable for geological conditions such as soft soil and silty soil, reducing vibration and soil squeezing effects, and has less impact on the surrounding environment.

INQUIRY

General Description

Performance Characteristics

Compared with the traditional caisson method, it does not require temporary support measures such as high-pressure jet grouting piles, reducing construction facility costs and ground disturbance.‌

Technical Specifications

Model	TY2000	TY2600	TY3100	TY3600	TY4500	TY5500
Max. casing diameter	2000mm	2600mm	3100mm	3600mm	4500mm	5500mm
Max. lift	240t	240t	240t	240t	240t	240t
Max. shaking power	150t	150t	180t	180t	300t	380t
Upper clamping force	80t	80t	160t	160t	200t	375t
Length	7070mm	7070mm	9560mm	9560mm	9800mm	11000mm
Width	3290mm	3290mm	4450mm	4450mm	5500mm	6700mm
Height	1960mm	1960mm	2250mm	2250mm	2250mm	2250mm
Total weight	12t	18t	31t	39t	45t	58t

Applications

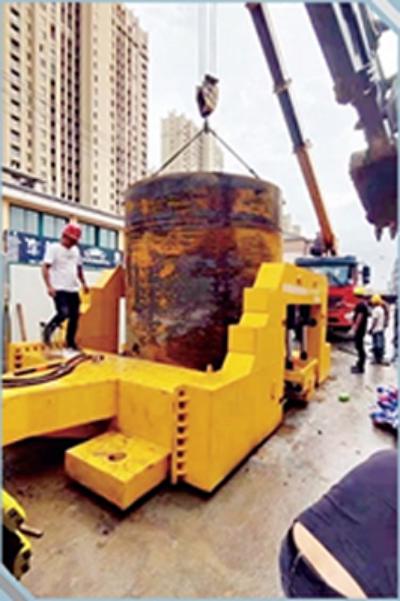

The static pressure caisson machine is a kind of special construction equipment. It is mainly used for the construction of working wells or caissons in underground projects. It presses the steel casing into the soil layer through static pressure, and at the same time cooperates with internal excavation to achieve sinking.

Its core uses include: ‌During caisson construction, the static pressure caisson machine tightens the steel casing through a hoop device and applies vertical pressure, gradually embedding it into the soil layer. It is suitable for municipal engineering, bridge foundations, sewage treatment plants, underground passages
