Hydraulic Power Slurry Balance Pipe Jacking Machine
Performance Characteristics
High construction precision, the guiding way can be guided by laser or wireless or wired.
Wide application in many different soil conditions, such as soft clay, hard clay, silty sand and quicksand etc.
Low construction cost and high efficiency, 4 workers is enough to control the equipment and 50 meters of soft clay can be finished a day.
The structure of this equipment is simple, the failure rate is low, and it is easy to learn and operate
Technical Specifications
|
Model |
Unit |
TY-DN400 |
TY-DN500 |
TY-DN600 |
||
|
Hydraulic |
Pipe diameter | ID |
mm |
φ400 |
φ500 |
φ600 |
| OD |
mm |
φ580 |
φ680 |
φ780 |
||
| OD*Length |
mm |
φ600*2750 |
φ700*2750 |
φ800*2750 |
||
| Cutting wheels | Motor Power |
KW |
7.5 |
11 |
15 |
|
| Torque |
KN |
7523 |
13000 |
18000 |
||
| Speed |
r/min |
9.5 |
7.5 |
6.5 |
||
| Correction system | Cylinder thrust |
KN |
12*4 |
16*4 |
25*4 |
|
| Cylinder number |
EA |
4 |
4 |
4 |
||
| Steering angle |
∠ |
2.5 |
2.5 |
2.5 |
||
| Slurry line diameter |
mm |
φ76 |
φ76 |
φ76 |
||
|
Jacking |
Motor power |
KW |
15*2 |
15*2 |
15*2 |
|
| Thrust |
KN |
800*2 |
1000*2 |
1000*2 |
||
| Walk |
mm |
1250 |
1250 |
1250 |
||
Applications

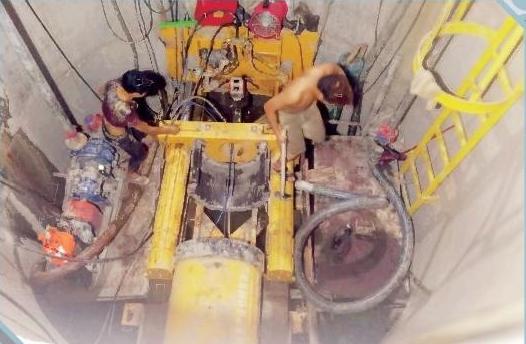

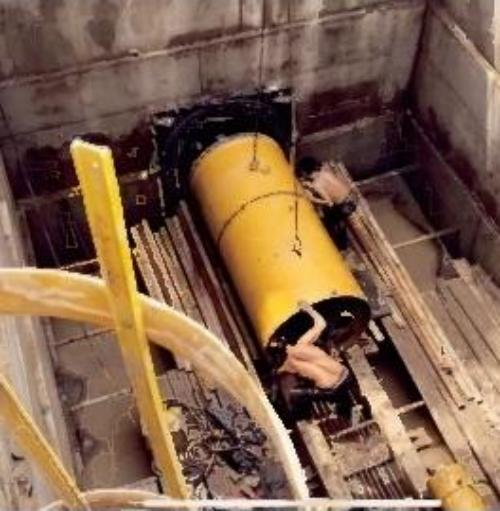

It is suitable for laying steel or semi-steel pipes with small diameter of 400,500 and 600mm sewage pipes, rain and sewage diversion pipes and thermal pipes in cities and towns.The equipment is small in size and can be constructed in circular working wells with diameter of 2500mm.
