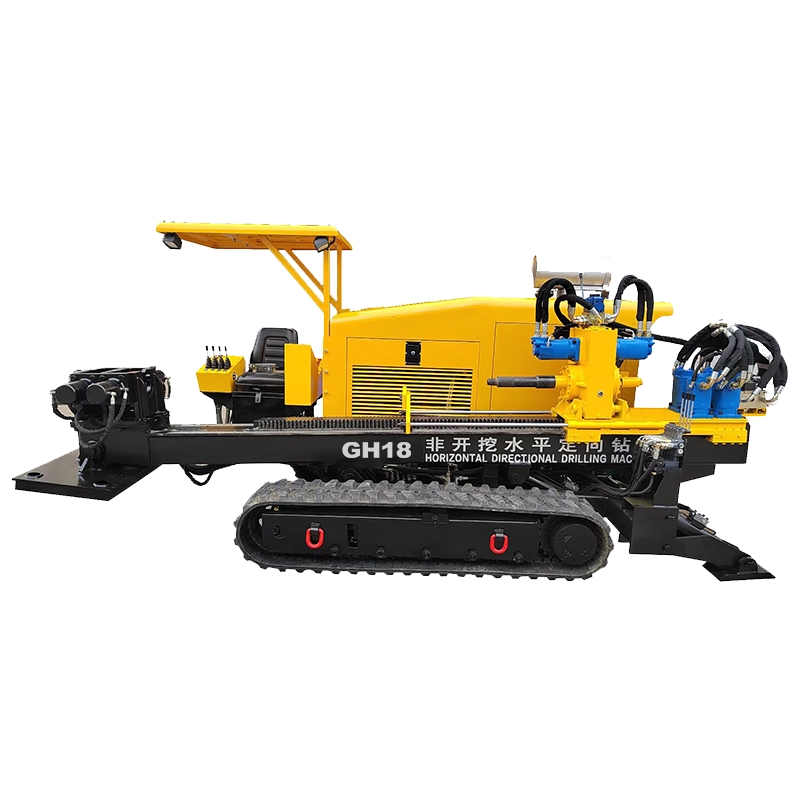

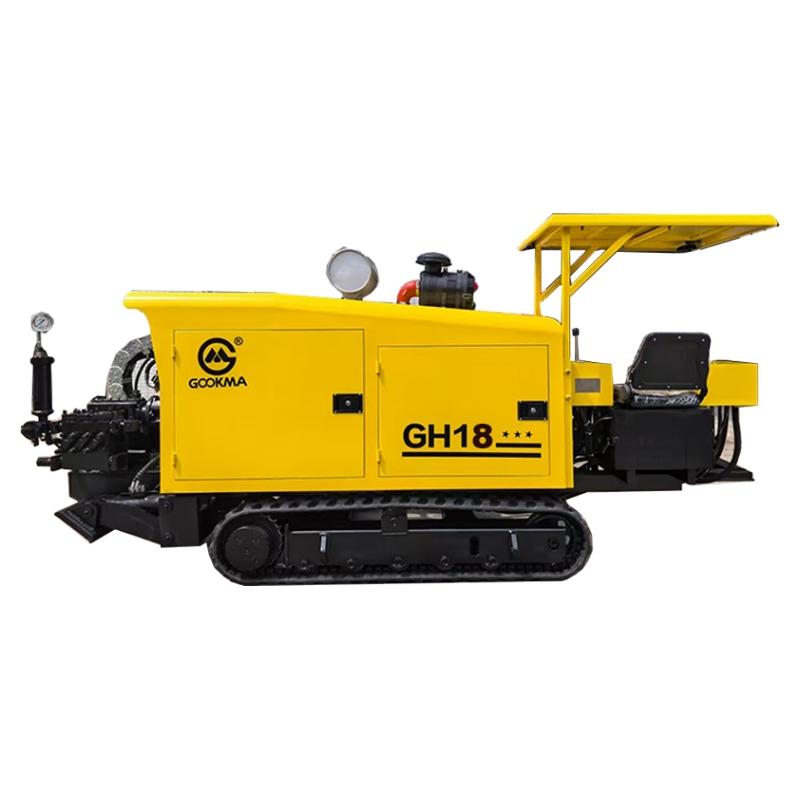

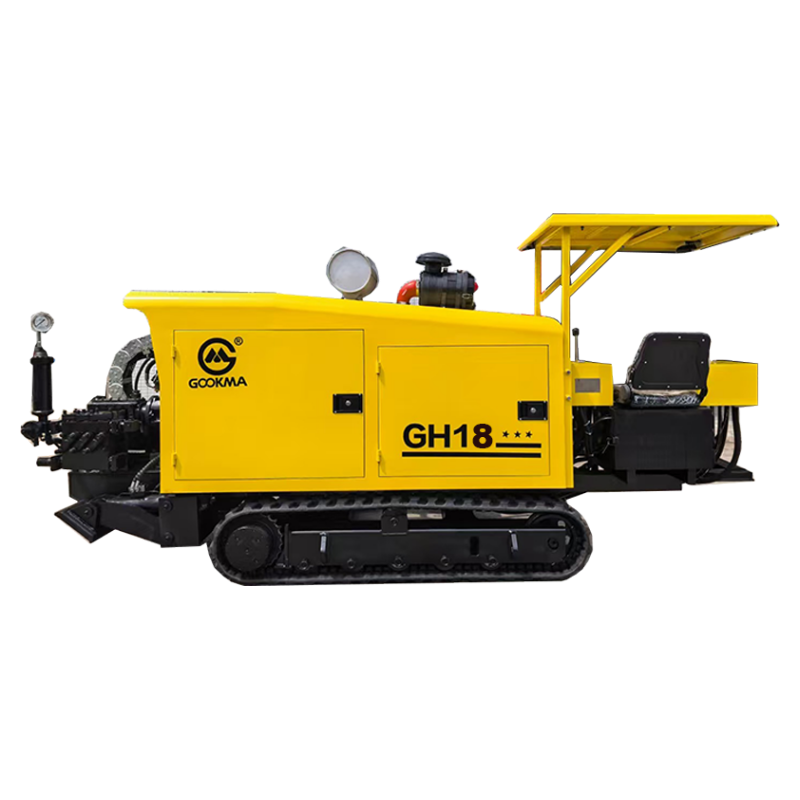

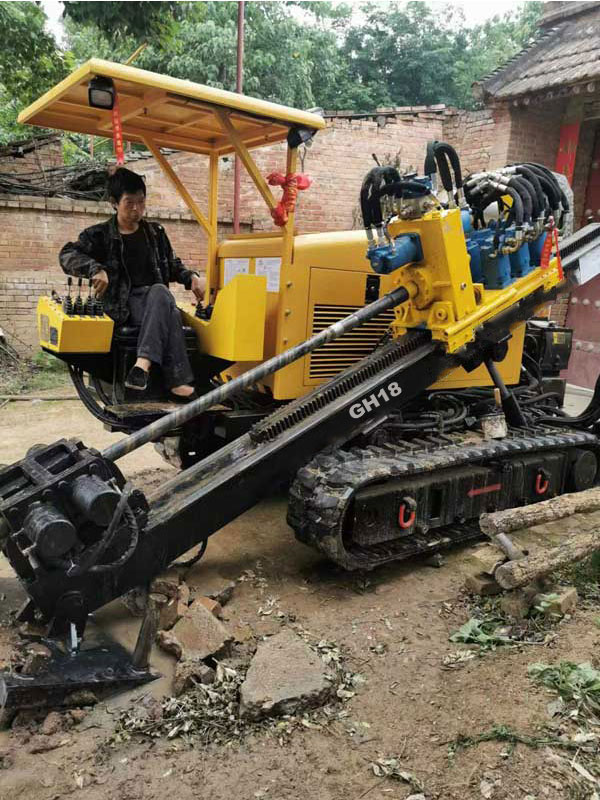

Horizontal Directional Drilling Machine GH18
Performance Characteristics
1. Steamline design, nice looking. Compact size, especially suitable for working at narrow sites.
2. Equips with Cummins engine, strong power, stable performance, low fuel consumption, low noise, more suitable for urban construction.
3. The rotating system is directly driven by the joint venture large-torque cycloid motor, with high torque, stable performance, high speed, good hole-forming effect and high efficiency;
4. Push and pull system adopts the joint venture company production cycloid motor, push and pull speed has two options, the construction of agile speed is far ahead of the peer;
5. Using first-class hydraulic walking drive device, simple and convenient operation, loading and unloading vehicles and site transfer fast and convenient.
6. Using ergonomic design of the wide operating table, and the seats can be moved back and forth, wide visual range, comfortable and convenient to operate.
7. With φ50 x 2000mm drill rod, the machine covers a moderate area, meet requirements of both efficient construction and narrow site construction.
8. Simple circuit design, low failure rate and easy to maintain.
9. Push and pull rotary hydraulic system adopts advanced series and parallel control technology and imported international first-class hydraulic components, independent dispersion thermal system, with high efficiency, energy saving and reliable work.
10. Equips with rubber crawler, good for ground protection.
11. The power head has a 4-speed adjustment function with large torque and rotates fast; The push-pull also has a 4-speed adjustment function with fast speed and stable performance.
Technical Specifications
| Model | GH18 |
| Engine | Cummins, 97KW |
| Max torque | 5000N.m |
| Push-pull drive type | Rack and pinion |
| Max push-pull force | 180KN |
| Max push-pull speed | 40m/min. |
| Max slewing speed | 180rpm |
| Max reaming diameter | 700mm (depends on soil condition) |
| Max drilling distance | 200m (depends on soil condition) |
| Drill rod | φ60x2000mm or φ60x3000mm |
| Mud pump flow | 180L/m |
| Mud pump pressure | 8Mpa |
| Walking drive type | Crawler self-propelling |
| Walking speed | 2.5--4.5km/h |
| Entry angle | 12-22° |
| Max gradeability | 18° |
| Overall dimensions | 4200x1900x2100mm |
| Machine weight | 4900kg |
