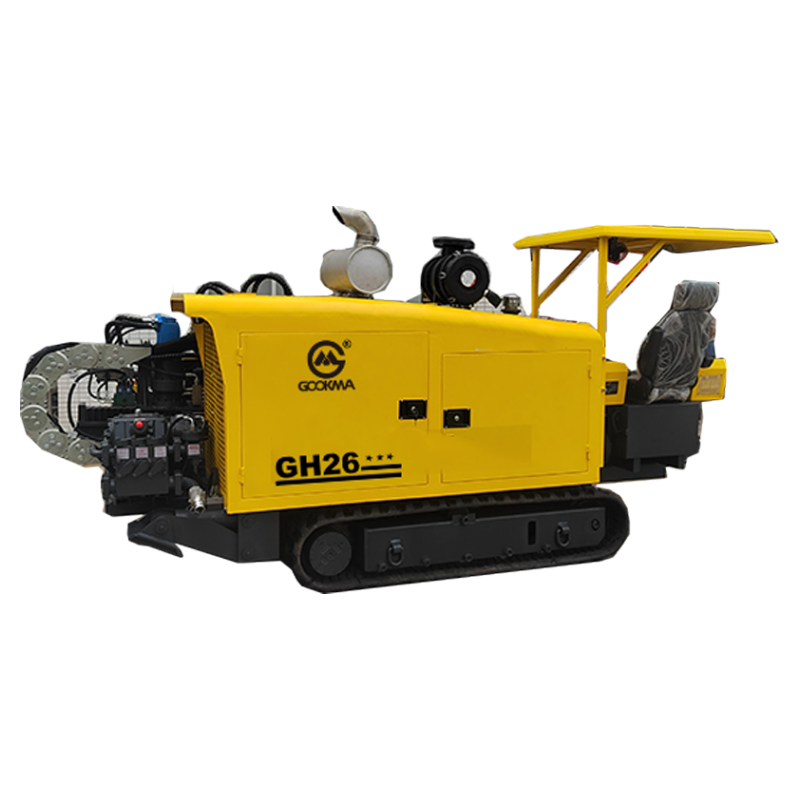

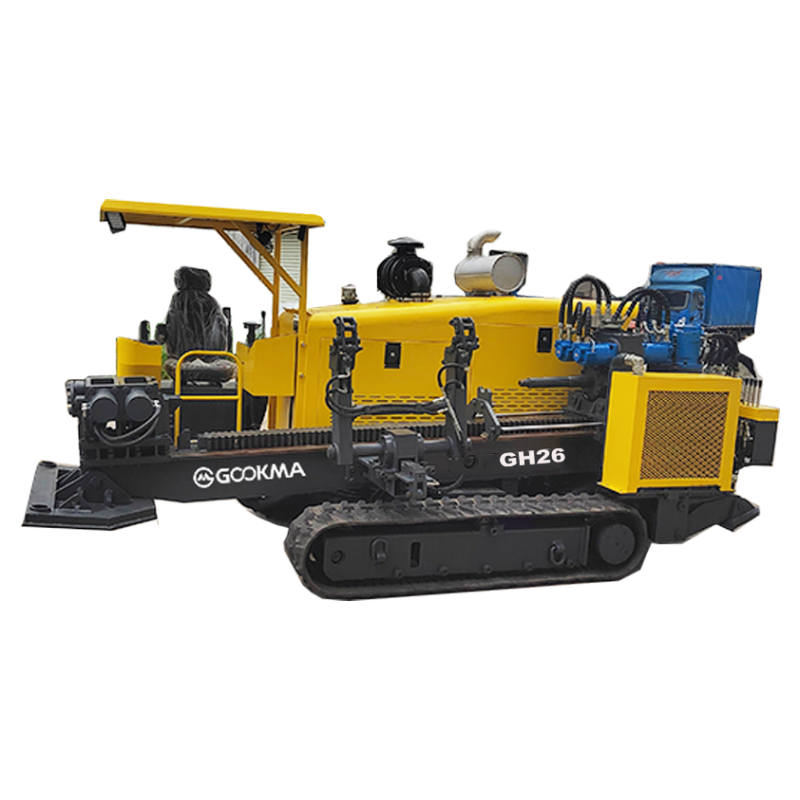

Horizontal Directional Drilling Machine GH26/GH26A
Performance Characteristics
1. Equipped with a Cummins engine, it offers strong power, stable performance, low fuelconsumption and low noise, making it ideal for urban construction.
2. The power head is directly driven by a high-torque cycloidal motor, offering high torque, stable performance, and two-speed stepless speed regulation.
3. The power head push and pull mechanisms utilize a cycloidal motor and integrated push-pull reducer, offering two selectable push and pull speed settings, making it agile and far ahead of its competitors.
4. The power head push-pull and rotation hydraulic system utilizes advanced series-parallel control technology and world-class hydraulic components, along with an independent cooling system, ensuring efficient, energy-efficient, and reliable operation.
5. A first-class hydraulic travel drive system ensures simple and convenient operation, enabling quick and easy loading and unloading, as well as site transfers.
6. The ergonomically designed, wide operating platform with a high-end seat that can be moved forward and backward provides a wide viewing area and comfortable, convenient operation.
7. The simple circuit design minimizes malfunctions and facilitates maintenance.

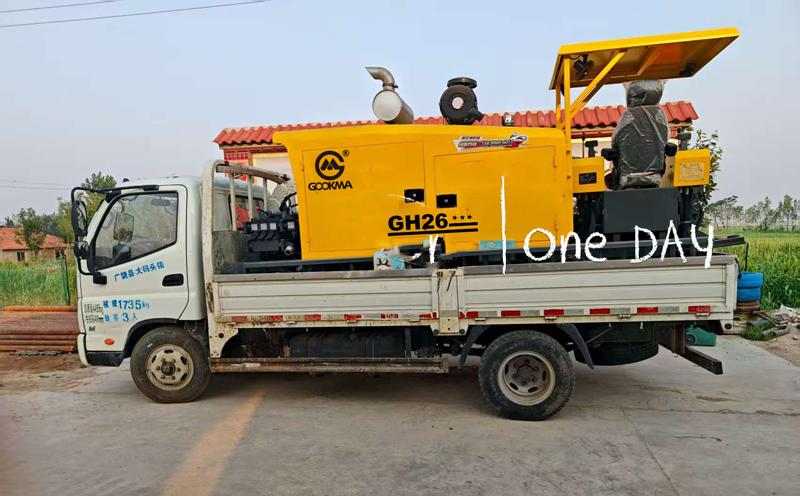

8. The GH26A is a space-limitation model specially designed according to customer’s requirements for construction at narrow sites but requires long distance and big diameter. It equips with φ60×2000mm drill rod. The machine is compact, it can be transported by a small truck, which is flexible and convenient, but the power and torque as well as the push-pull force is big, it is suitable to work at narrow sites for long distance.
Technical Specifications
| Model | GH26 / GH26A |
| Engine | Cummins, 132KW |
| Max torque | 8300N.m |
| Push-pull drive type | Rack and pinion |
| Max push-pull force | 260KN |
| Max push-pull speed | 50m/min. |
| Max slewing speed | 255rpm |
| Max reaming diameter | 800mm (depends on soil condition) |
| Max drilling distance | 300m (depends on soil condition) |
| Drill rod | φ73x3000mm (GH26) / φ60x2000mm (GH26A) |
| Mud pump flow | 240L/m |
| Mud pump pressure | 8Mpa |
| Walking drive type | Crawler self-propelling |
| Walking speed | 2--4km/h |
| Entry angle | 8-25° |
| Max gradeability | 18° |
| Overall dimensions | 6300x2150x2400mm (GH26) ;4600x1900×2100mm (GH26A) |
| Machine weight | 8000kg (GH26) / 6000kg (GH26A) |
